5.5Kw Metal Roofing Forming Machine with PLC control box

Name: 55Kw Metal Roofing Forming Machine with PLC control box
Brand: Dingbo
Price: 15 USD

Buy cheap 5.5Kw Metal Roofing Forming Machine with PLC control box product

Brand Name : Dingbo

Model Number : According to the Profile

Certification : SGS CE ISO

Place of Origin : China

MOQ : 1 Set

Price : US$ 15,000~40,000

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10 Sets per Month

Delivery Time : 30~50 Days After receiving the Deposit

Packaging Details : Nude Package in 40 GP Container

Voltage : 380v/50 Hz

Weight : 5ton

After-sales service provided : Online support

Condition : New

Use : Roof/wall

Warranty : 12months

Contact Now

5.5KW Double-layer Roof Panel Roll Forming Machine with Electric Control

Product Data

1. Double layer roof sheets roll former
Main Motor Power:	5.5kw
Raw material	GI steel 0.3-0.8mm
Coder	omron
Working Hours Per Day	8 to 16
Roll Station	14 steps for 840 roof, 16 steps for 900 trapezoidal
Working Speed	10m-13m/min
Type Of Forming Machine	wall board
Shipment Packing	one 40 FT containe
Forming Speed	20mtr./min(Not include shear)
Line Direction	Left to Right While Facing Operator Panel
Length Tolerance	±1.5mm
Computer Operating Panel	toching screen
2. Manual decoiler
Capacity	5ton
Feed Width	max 1250mm
Expanding Range	480-520mm
3. passive output table
Valid length	max 4m
Capacity	10ton
Max loading height	100mm
Transport	by roller passively

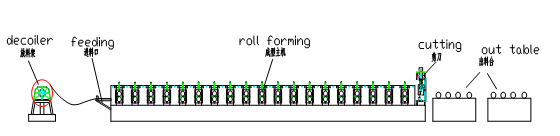

Working flow

Decoiler---feeding---roll forming---hydraulic cut to length---output table

5.5Kw Metal Roofing Forming Machine with PLC control box

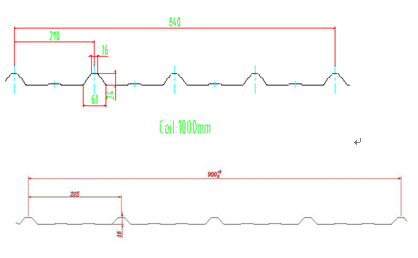

The profile drawing

5.5Kw Metal Roofing Forming Machine with PLC control box

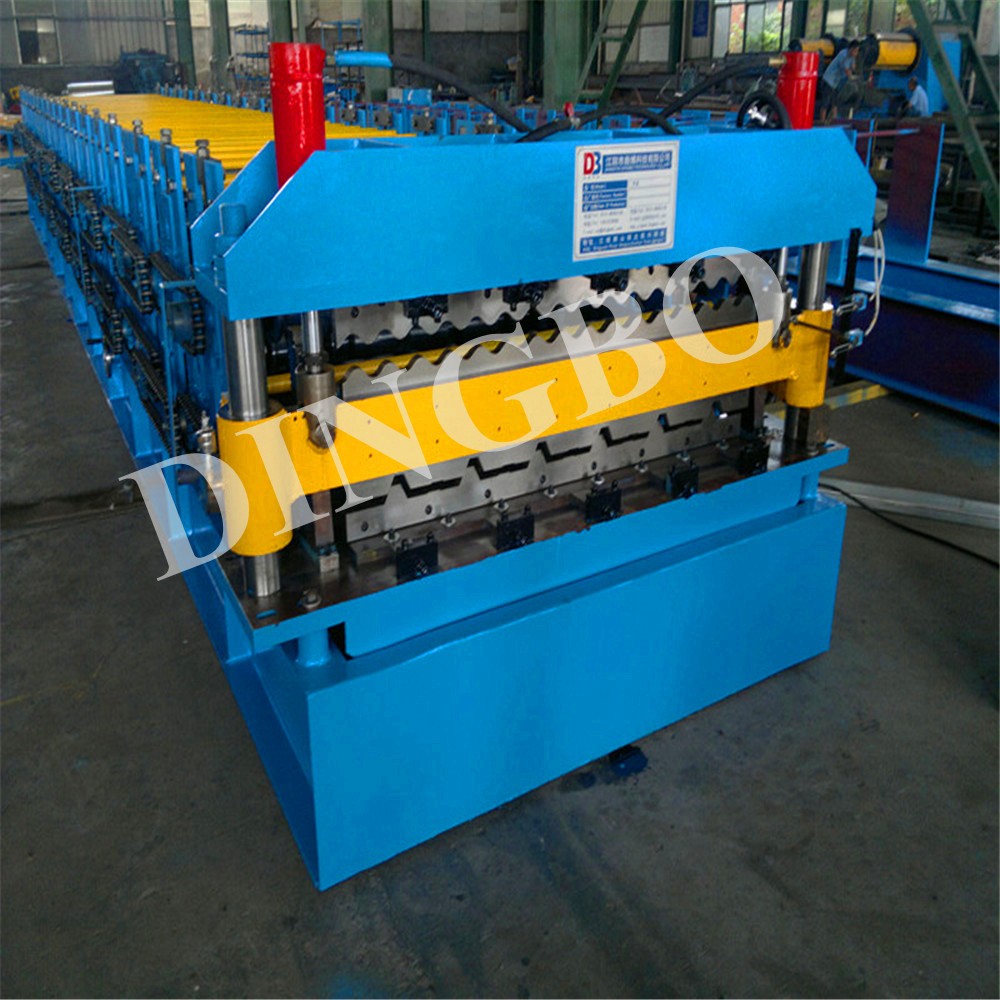

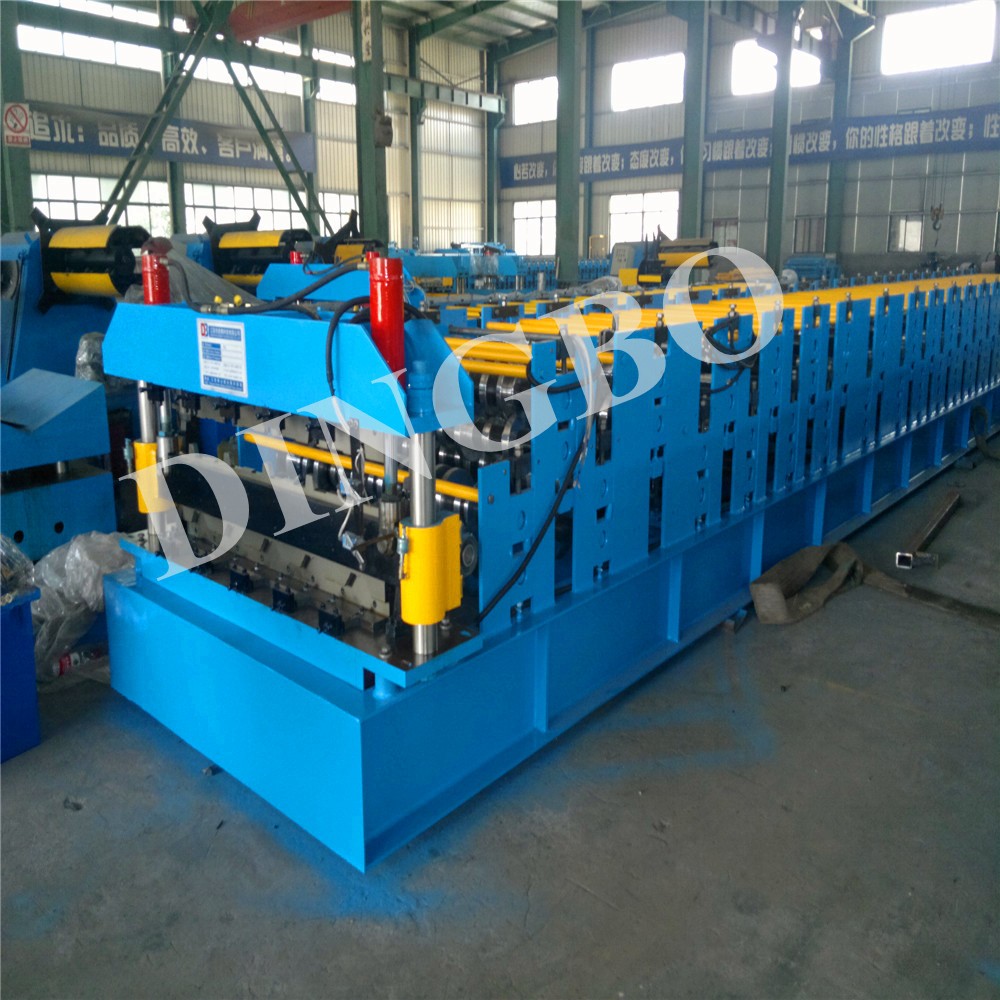

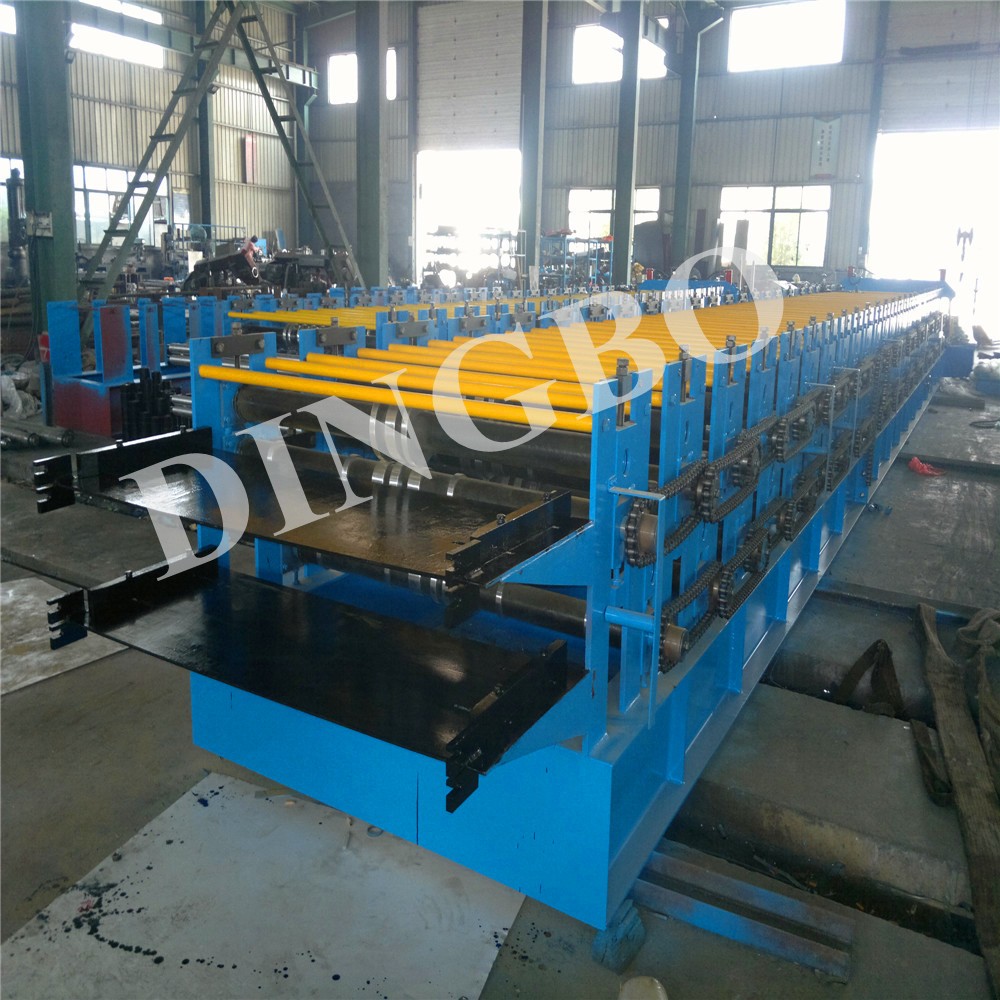

Photo for refrence

5.5Kw Metal Roofing Forming Machine with PLC control box

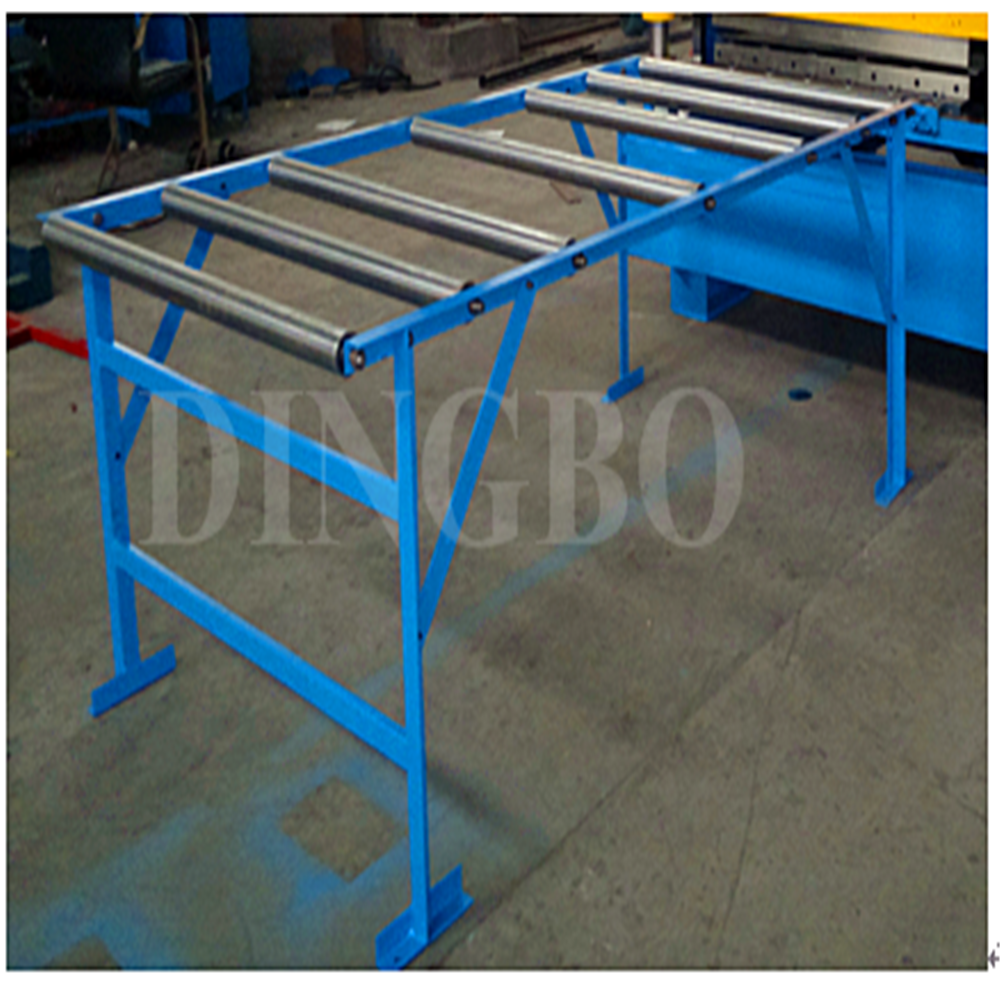

Passive output table

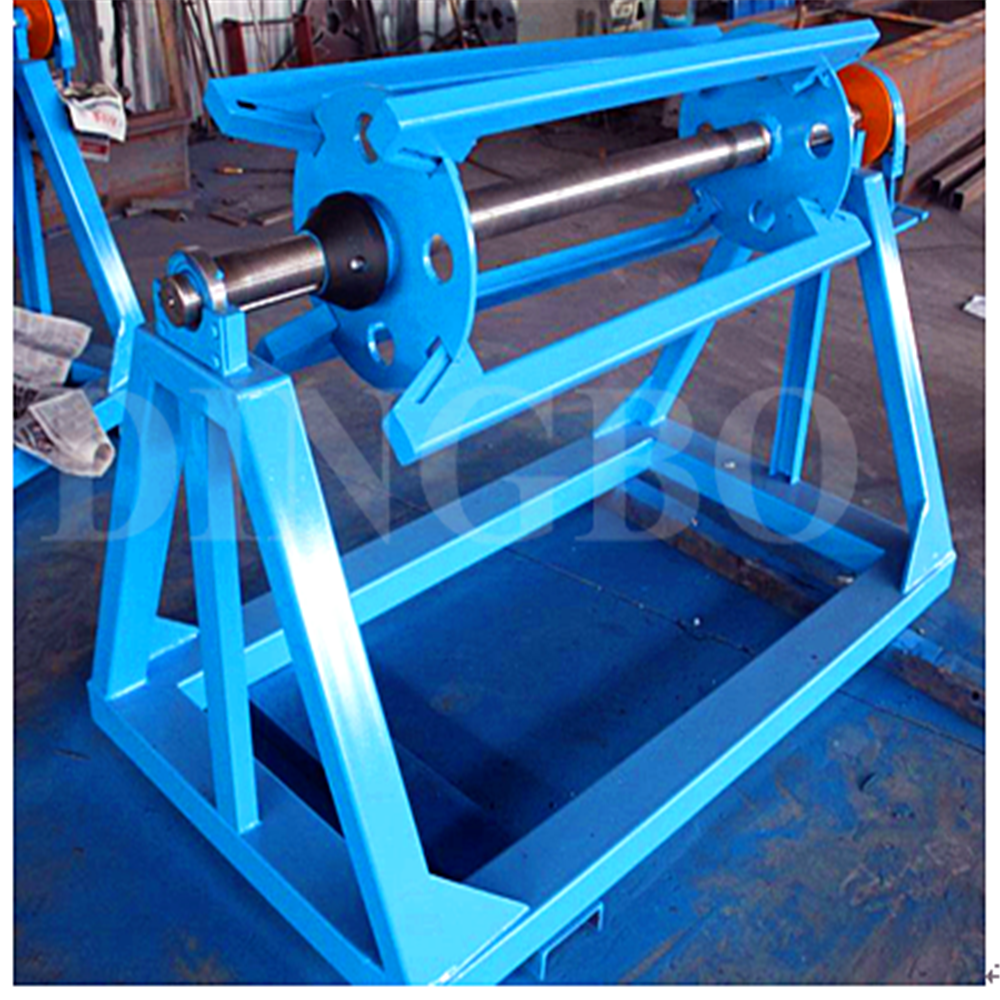

5ton manual decoiler

5.5Kw Metal Roofing Forming Machine with PLC control box

Certificates

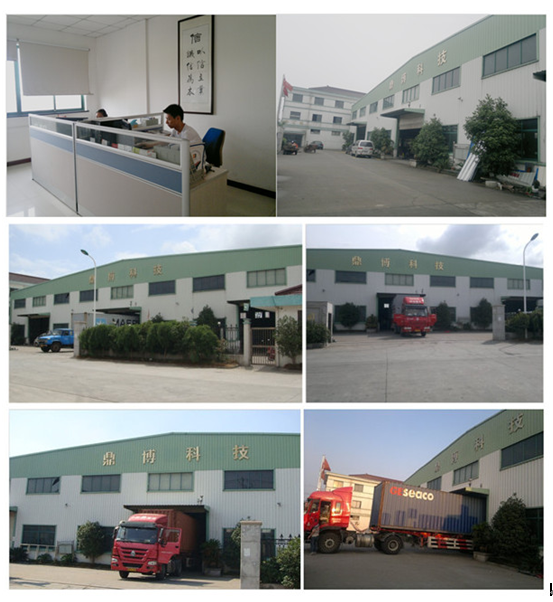

Company scene

5.5Kw Metal Roofing Forming Machine with PLC control box

After Service

1.Engineer will give free training lessons to labors in buyer’s factory.

2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD50 per day for engineer.
3.During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by incorrect operations, we will provide

the buyer spare parts at cost price.
4.We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
