Touching Screen C Purlin Roll Forming Machine With 76mm Material

Brand Name : DB

Model Number : According to the Profile

Certification : CE.SGS.ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Set

Price : US $15,000 - 20,000 / Set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 35 Days

Packaging Details : nude pacakge in a 40 GP container

After sales service provided : Service Machinery Overseas

Contact Now

Engineers Serve Overseas C Purlin Roll Forming Machine with High Speed



The profile drawing



The thickness of Material: 2.0-3.0mm



Touching Screen C Purlin Roll Forming Machine With 76mm Material



Working flow



Touching Screen C Purlin Roll Forming Machine With 76mm Material





Main Specification



Manual uncoiler
Capacity 5ton
Feeding width MAX 600mm
Expanding range 460-520mm





Main roll forming system
Main motor power 15kw
Main shaft dia 76mm material: 45forge steel and quenched
Roller material Gcr15 bearing steel forge steel and quench treatment hardness 58-62, chrome coated 0.05mm
Roll station 12 groups
Raw material Galvanized steel 2.0-3.0mm thick
Width of purlin 100-300mm adjustable
Working speed 10m--15m/min(Exclude cutting time)
Weight of machine about 6ton
Size of machine About 9500×1000×1500mm L x W x H
Color of machine up to you
Coder Omron
Omron PLC Panasonic, made in Japan. 380V 50HZ, 3 phases
Computer operating panel touching screen
Punching Hydraulic punching before roll forming
Cutting Hydraulic cutting after roll forming, cutting when reach the set length.
Hydraulic power 5.5KW
Blade material Cr12,quenched 58°-62°
Working pressure 20mpa
Cutting tolerance +/- 1.5mm
Random 3 pieces of cutters

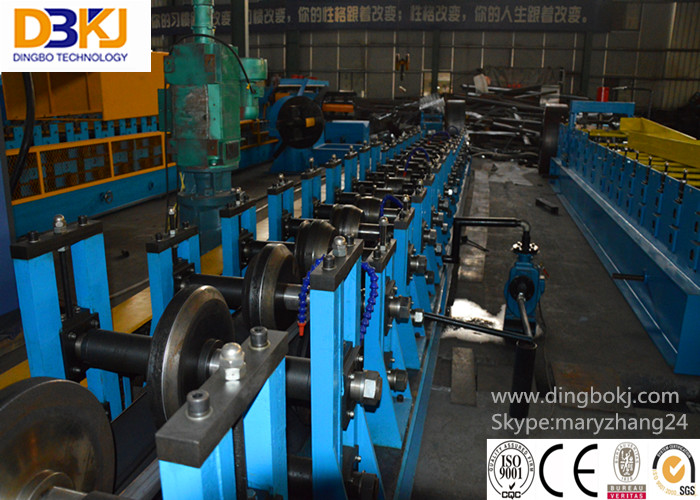

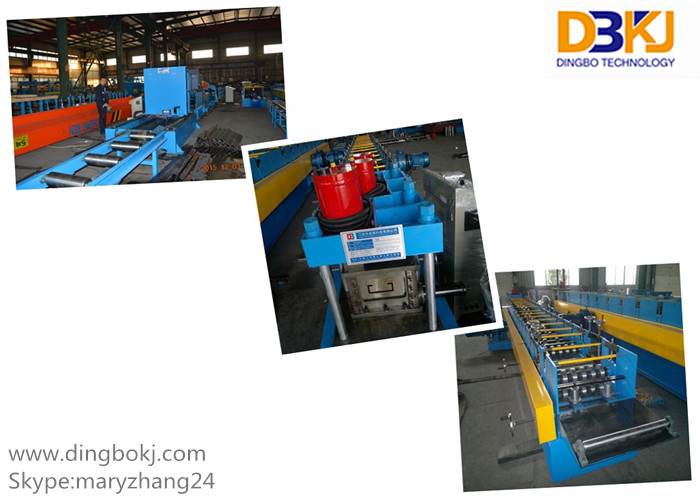

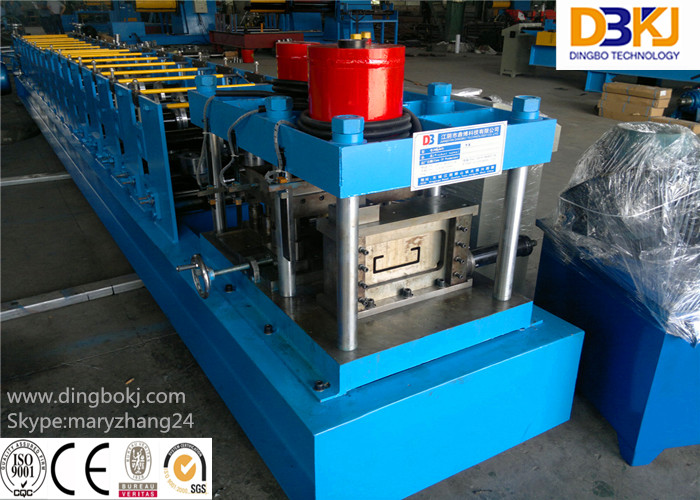

Pictures for Reference



Touching Screen C Purlin Roll Forming Machine With 76mm Material



Touching Screen C Purlin Roll Forming Machine With 76mm Material



Touching Screen C Purlin Roll Forming Machine With 76mm Material
