25m / Min Speed Floor Deck Roll Former Metal Forming Machine With PLC Contol

Name: 25m Min Speed Floor Deck Roll Former Metal Forming Machine With PLC Contol
Brand: Dingbo
Price: 1 USD

Buy cheap 25m / Min Speed Floor Deck Roll Former Metal Forming Machine With PLC Contol product

Brand Name : Dingbo

Model Number : According to the Profile

Certification : ISO CE SGS

Place of Origin : Jiangsu, China

MOQ : 1 Set

Price : US $29,000 - 39,000

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 8 Sets per Month

Delivery Time : 30~50 Days After Receiving the Deposit

Packaging Details : Nude Package in 40 GP Container

Way Of Drive : chain

Contact Now

25m/ min Speed Floor deck roll former metal forming machine with PLC Contol

Product Description

Product Feature:
The metal deck produced by deck roll forming machine has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.

Machines components:
Deck forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, cutting device, hydraulic station, PLC control system and support table.

Main technical parameters:
1. Suitable material: color steel sheet or galvanized steel sheet
2.Thickness of raw material: 0.8-1.2mm
3. Forming speed: about 12-15m/min
4. Power Requirement     Main motor power:11X2Kw (Depend on final design)
                                            Hydraulic station power: 5.5Kw (Depend on final design)
5. Uncoilers loading capacity    Max. Capacity: 5000kgs (can be increased to be 10T)
6. Controlling system: Mitsubishi PLC & Converter
7. Voltage: 380v/3phase/50Hz or as per the customer's requirement
8. Machines size: about 15m ×1.8m × 1.6m (Depend on final design)

Machine Description	Quantity	Delivery time	Container Type	Price/ USD (FOB TIANJIN)
metal forming machine	1 SET	45 working days after receiving deposit	One 40GP	19500-29500

metal forming machineProcess Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Product name			floor deck roll former
NO.	Items		Parameters	Remark
1	Suitable Material	Type	GI/PPGI/AL
		Thickness	0.80-1.20mm
2	Product Specifications	Length	Any length
		Length Tolerance	±2mm/6m
3	Working Speed	25 m/min		Standard machine
4	Control System	Mitsubishi/Siemens PLC& transducer		Custom
5	Total Power	15KW
6	Total Weight	About 14T		Up to final design

Components of metal forming machine:

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1
8	Counter	set	1

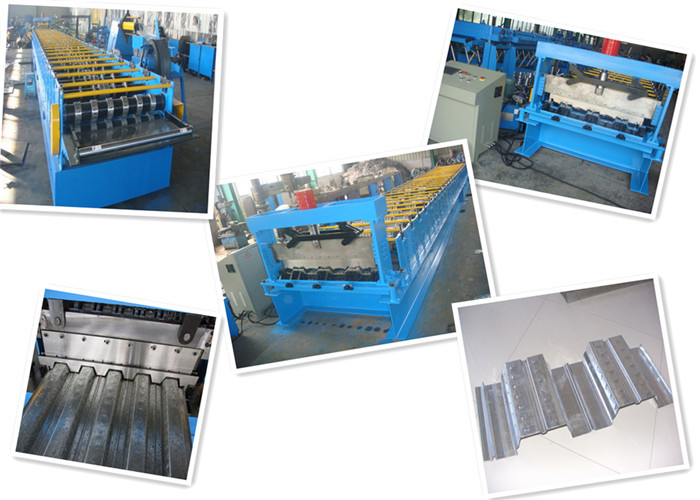

Photos to refer

25m / Min Speed Floor Deck Roll Former Metal Forming Machine With PLC Contol

Certificates

Company Scene

Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. Introduced Mitsubishi PLC with touch screen to machine controll system.
4. Roller cover with 0.05mm chrome; 82mm diameter solid steel shaft. Lifetime>10years.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
